NCC series V Clamp Kinematic Mount

NCC is Zolix new design "N series" V groove kinematic mount for the cylinder such as gradient index lens, cylinder laser, fiber collimator.

Inquiry

Details

Features:

• High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.

• Advanced structure：

① V clamp and one press arm hold the cylinder in stable three point

② Slit pressing fixing mechenism , hold the position stable.

• Universal mounting : Mount the cylinder 6-40mm Dia.

Selection Table:

Model	NCC10	NCC20	NCC50
Optic Size (mm)	φ2~φ10	φ5~φ20	φ15~φ50
Main Body Material and Treatment	aluminium alloy, surface treated by black anodic oxidation.
Overall Height(mm)	33.5	47	81
Overall Width (mm)	20	45.5	62.5
V Groove Width (mm)	8.5	14.5	48
Mounting Hole	M4	M4	sink holeφ11
Net Weight (g)	15	38	375

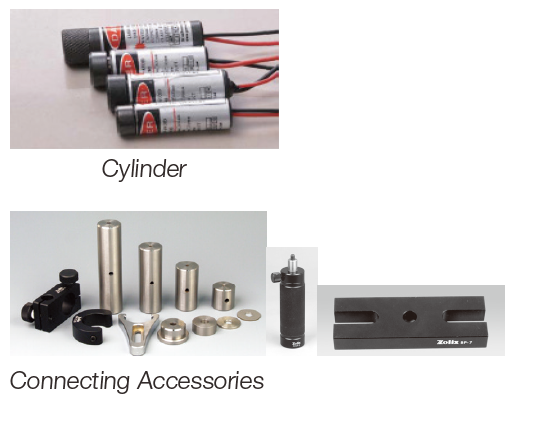

Related Products:
